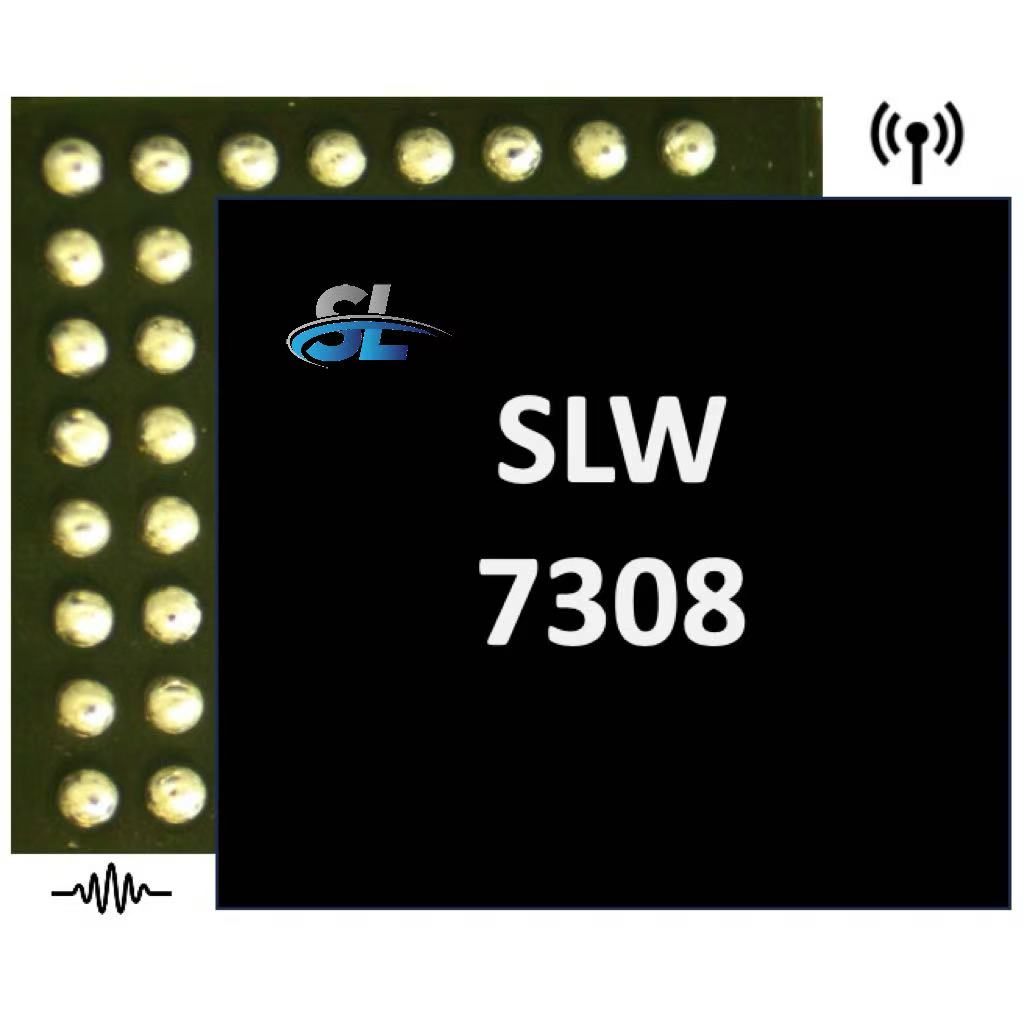

SLW7308B Transceiver for 5.5G/6G Satcom Application

SLW7308B is a CMOS silicon on insulator (SOI), 24GHz to 44GHz, mmWave 5.5G/6G Satcom beamformer. The SLW7308 drives 4 horizontal and 4 vertical polarized antennas via independent RFV and RFH bond pads.
In transmit mode, the RFT and RFB input pins drive the eight independent transmit channels via the 1:4 power splitters. The transmit channels feed the 8 RFV/RFH antenna ports. In receive mode, input signals pass through the 8 receive channels and combine via two independent 4:1 power combiner to the common RFT pin or RFB pin. In either mode, each transmit and receive channel includes a phase shifter (PS) and variable gain amplifiers (VGAs) to control the phase and amplitude. The phase shifter has a full 3600 phase adjustment range in either transmit or receive mode, with 5 bits of resolution (expandable to 9-bit resolution).
The RFV and RFH bond pads can be connected directly to a 5.5G/6G Satcom mm-Wave antenna array. The SLW7308 can be programmed using a 3-wire serial port interface (SPI). Various SPI modes are available to enable fast startup and control during normal operation. The amplitude and phase for each channel can be programmed either individually or multiple channels simultaneously using the on-chip SPI for beamforming.

Key Features

• RF range: 24.0 GHz to 44.0 GHz,
• Supported bands: n257, n258, n259, n260, n261,
• 8 channels, dual polarized,
• 5-bit PS resolution for phase control, expandable to 9 bits.
• 5-bit amplitude control by VGA,
• beam positions calibration by PS and VGA,
• fast TDD switching of the transmit and receive channels,
• Support FDD for satcom applications,
• Supports 3/4-wire SPI up to 1 MHz SPI clock speed,
• High-speed digital SPI-based interface,
• Fast beam switching drive 4 horizontal and 4 vertical antenna ports,
• Matched with 50 Ω single-ended RF input and output,
• Dual power supply: 1.8V and 1.0V,
• Package: 4480umx5580umx230um, 183 C4 ball bumps with Ø80um.

Transmit operation per channel:

• OP1dB: +16dBm Typical,
• High linear nominal gain: 8dB Typ.

Receive operation per channel:

• High gain: 25 dB Typ,
• Low Noise Figure 4.3 dB Typ.
• High Linearity: IIP3 = -8 dBm Typ
• Low Noise Figure 7.6dB Typ.
• High Linearity: IIP3 = -8dBm Typ
